NVR

NVR616/616D/616R/616DR-128-4K

128 Channel Super 4K Network Video Recorder



  • Max 128 channel IP cameras connection
  • Max 384Mbps incoming bandwidth
  • Up to 12Mp resolution preview& playback
  • 1 VGA+2 HDMI
  • Support 16 hot-swap HDDs
  • Support RAID 0/1/5/6/10/50/60
  • Support N+M hot standby
  • Support iSCSI & Mini SAS to expand storage space
  • Compatible with Dahua SDK and seamless integrated to other platforms
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • Redundant power supply module adopted (DH-NVR616R-128 &DH-NVR616DR-128)
  • Front LCD display (DH-NVR616D-128 & DH-NVR616DR-128)
Download
NVR616-128-4K 616R-128-4K 616D-128-4K 61[...]
Adobe Acrobat document [434.4 KB]
NVR4208/4216/4232(-8P)-4K
8/16/32CH 1U 4K Network Video Recorder
  • Up to 8/16/32 channel 4K IP camera input H.265/H.264/MJPEG dual codec decoding Max 256Mbps incoming bandwidth
  • Up to 12Mp resolution preview&playback
  • HDMI/VGA simultaneous video output
  • 8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0) Support IPC UPnP, 8PoE ports (for -8P model)
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
Download
NVR4208 4216 4232(-8P)-4K.pdf
Adobe Acrobat document [371.6 KB]

NVR724-256/ 724R-256/ 724DR-256
256 Channel Super Network Video Recorder



  • Max 256 channel IP cameras connection
  • Max 512Mbps incoming bandwidth
  • Up to 128ch@1080P, 256ch@720P realtime recording
  • 2 HDMI / 1 HDMI +1 VGA (Optional: 6 HDMI sync output / 1 VGA+5 HDMI sync output)
  • Support 24 hot-swap HDDs
  • Support RAID 0/1/5
  • Support N+M hot standby
  • Support iSCSI & Mini SAS to expand storage space
  • Human-oriented Dahua UI
  • Compatible with Dahua SDK and seamless integrated to other platforms
  • Support Multi-brand network cameras:
  • Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.2 conformance
  • Redundant power supply module adopted (DH-NVR724R-256 & DH-NVR724DR-256)
  • Front LCD display (DH-NVR724D-256 & DH-NVR724DR-256)
Download
NVR724-256 724R-256 724D-256 724DR-256-v[...]
Adobe Acrobat document [339.0 KB]

NVR6000/6000D/6000DR
128 Channel Super Network Video Recorder



  • Max 128 channel IP cameras input with 1080P realtime live view
  • Max 384Mbps incoming bandwidth
  • Up to 64ch@1080P, 128ch@720P, 128ch@D1 realtime recording
  • Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync output (Default: 2 HDMI or 1
  • HDMI +1 VGA)
  • Support 16 hot-swap SATA HDDs to better its scalability and flexibility
  • Support RAID 0/1/5
  • Human-oriented Dahua UI
  • Compatible with Dahua SDK and seamless integrated to other platforms
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.0 conformance
  • Redundant power supply module adopted (DH-NVR6000DR)
  • Front LCD display (DH-NVR6000D/DH-NVR6000DR)
Download
DH-NVR6000 6000D 6000DR-1.pdf
Adobe Acrobat document [352.6 KB]

NVR-7208/ 7216/ 7232/ 7264-8P

8/16/32/64 Channel 1U 8PoE Network Video Recorder



  • Up to8/16/32/64channel with1080Prealtimelive view
  • H.264/MJPEGdual codecdecoding
  • Max 256Mbps incoming bandwidth HDMI/VGA simultaneous video output
  • 8/16/32channel synchronousrealtime preview, GRIDinterface
  • SupportMulti-brand  network cameras: Dahua, ArecontVision, AXIS, Bosch, Brickcom,Canon,CP. Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotekand etc. ONVIF Version2.2 conformance
  • 3D intelligent position ingwith Dahua PTZ camera
  • Support 2SATA HDD supto 8TB, 2 USB2.0
  • Support IPC UPnP, 8PoEports
  • Multiplenetwork monitoring:Webviewer,
  • CMS(DSS/PSS)&DMSS
Download
NVR7208 7216 7232 7264-8P.pdf
Adobe Acrobat document [246.8 KB]

NVR-7816/7832/7864-16P

16/32/64 Channel 16 PoE Network Video Recorder



  • Up to16/32/64channel IP camerasconnection
  • H.264/MJPEGdual codecdecoding Max 256Mbps incoming bandwidth HDMI/VGA simultaneous video output
  • 16/32channel synchronous realtimepreview,GRIDinterface
  • SupportMulti-brandnetworkcameras:Dahua, ArecontVision,AXIS,Bosch,Brickcom,Canon, CPPlus,Dynacolor,Honeywell,Panasonic,Pelco,Samsung,Sanyo,Sony,Videosec,Vivotekand etc.
  • ONVIF Version2.2 conformance
  • 3Dintelligentpositioningwith Dahua PTZcamera
  • Support8SATA HDDsup to32TB, 4 USB2.0
  • Support IPC UPnP, 16 PoEports
  • Multiplenetwork monitoring:Webviewer, CMS(DSS/PSS)&DMSS
Download
DH-NVR7816 7832 7864-16P.pdf
Adobe Acrobat document [338.4 KB]

NVR4408/4416/4432

8/16/32CH 1.5U Network Video Recorder



  • Up to 8/16/32 channel with 1080P real time live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview &playback
  • HDMI/VGA/TV simultaneous video output
  • 8/16 channel synchronous real time playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 2 USB(1 USB3.0) Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
DH-NVR4408 4416 4432.pdf
Adobe Acrobat document [334.9 KB]

NVR4408/4416/4432-8P
8/16/32CH 1.5U 8PoE Network Video Recorder



  • Up to 8/16/32 channel with 1080P real time live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview &playback
  • HDMI/VGA/TV simultaneous video output
  • 8/16 channel synchronous real time playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 2 USB(1 USB3.0) Support IPC UPnP, 8PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
New file download

NVR4208/4216/4232-8P

8/16/32CH 1U 8PoE Network Video Recorder


  • Up to 8/16/32 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA simultaneous video output
  • 8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0) Support IPC UPnP,8PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
NVR4208 4216 4232-8P 0623.pdf
Adobe Acrobat document [305.9 KB]

NVR4416/4432-16P

16/32CH 1.5U 16PoE Network Video Recorder



  • Up to 16/32 channel with 1080Prealtime live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview &playback
  • HDMI/VGA/TV simultaneous video output
  • 16 channel synchronous real time playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,2 USB(1 USB3.0) Support IPC UPnP, 16PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
DH-NVR4416 4432-16P.pdf
Adobe Acrobat document [340.9 KB]

NVR4104/4108/4116H-P
4/8/16CH Mini 1U 4PoE Network Video Recorder



  • Up to 4/8/16 channel with 1080P realtime live view
  • Max 80Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • H.264/MJPEG dual codec decoding
  • HDMI/VGA simultaneous video output
  • All channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
  • CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and
  • etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 1 SATA HDD up to 4TB, 2 USB2.0
  • Support IPC UPnP, 4PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



Download
NVR4104 4108 4116H-P.pdf
Adobe Acrobat document [285.5 KB]

NVR4204/4208/4216/4232-P

4/8/16/32CH 1U 4PoE Network Video Recorder



  • Up to 4/8/16/32 channel with 1080P real time live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview &playback
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous real time playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3conformance
  • 3D intelligent positioning with Dahua PTZ camera Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0) Support IPC UPnP, 4PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
NVR4204 4208 4216 4232-P-v1.pdf
Adobe Acrobat document [300.9 KB]

NVR4204/4208/4216/4232

4/8/16/32CH 1U Network Video Recorder


  • Up to 4/8/16/32 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 5Mp resolution preview&playback
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
  • Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
NVR4204 4208 4216 4232-V1.pdf
Adobe Acrobat document [297.7 KB]

NVR5808-8P/5816-8P/5832-8P

8/16/32 Channel 2U Network Video Recorder with 8 PoE



  • Up to 8/16/32 channel with 1080prealtime live view
  • H.264/MJPEG dual codec decoding
  • Up to 5 Megapixel resolution
  • Max 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
  • HDMI / VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 8 PoE Port



Download
DH-NVR5808 5816 5832.pdf
Adobe Acrobat document [370.1 KB]

NVR5808/ 5816/ 5832

8/16/32 Channel 2U Network Video Recorder



  • Up to 8/16/32 channel with 1080prealtime live view
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution
  • Max 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
  • HDMI / VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
DH-NVR5808 5816 5832.pdf
Adobe Acrobat document [370.1 KB]

NVR5208/ 5216/ 5232

8/16/32 Channel 1U Network Video Recorder



  • Up to 8/16/32 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding
  • Up to 5Mp resolution
  • Max 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
  • HDMI / VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 8TB, 2 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
DH-NVR5208 5216 5232.pdf
Adobe Acrobat document [402.5 KB]

NVR5208-8P/5216-8P/5232-8P

8/16/32 Channel 1U Network Video Recorder with 8 PoE



  • Up to 8/16/32 channel with 1080P realtime live view
  • H.264/MJPEG dual codec decoding

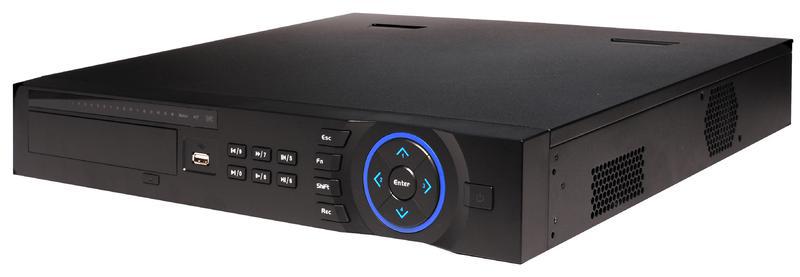

  • Up to 5Mp resolution
  • Max 240fps@1080p, 480fps@720p, 960ps@D1 preview & recording
  • HDMI / VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • 8 PoE ports, Plug&Play
  • Support 2 SATA HDDs up to 8TB, 2 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
DH-NVR5208 5216 5232-P.pdf
Adobe Acrobat document [392.6 KB]

NVR   3204V-P/3208V-P/3216V-P

4/8/16 Channel 2HDD Vertical Network Video Recorder with 4 PoE



  • Up to 4/8/16 channel with 1080p realtime live view
  • H.264/MJPEG dual codec decoding
  • Max 120fps@1080p, 240fps@720p,480fps@D1 preview & recording
  • All channel simultaneous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
  • ONVIF Version 2.0 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 8TB, 1 eSATA up to 16TB, 3 USB2.0
  • Support IPC UPnP, 4 PoE ports
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



Download
DH-NVR3204V-P 3208V-P 3216V-P.pdf
Adobe Acrobat document [379.4 KB]
